EQUIPAMENTO ADQUIRIDO NO ÂMBITO DO PROGRAMA NACIONAL DE RE-EQUIPAMENTO CIENTÍFICO – PROJECTO REEQ/1095/ECM/2005 - FINANCIADO PELA FUNDAÇÃO PARA A CIÊNCIA E A TECNOLOGIA
ThermaCAM™ B4
Especially developed for the building industry
| IMAGING PERFORMANCE |
| Field of view/min focus distance |
25° x 19°/0.3 m |
| Thermal sensitivity |
0.08°C at 30°C |
| Image frequency |
25/30 Hz non-interlaced |
| Focus |
Manual |
| Detector type |
Focal Plane Array (FPA), uncooled microbolometer 320 x 240 pixels |
| Spectral range |
7.5 to 13 µm |
| Digital zoom |
1x, 2x or 4x |
| IMAGE PRESENTATION |
| Video output |
PAL or NTSC, standard RCA composite video |
| External display |
2.5" color LCD, 16K colors |
| MEASUREMENT |
| Temperature range |
-20°C to +55°C |
| Accuracy |
±2°C, ±2% |
| Repeatability |
±1°C, ±1% |
| Measurement mode |
3 movable spots, area max, area min, area avg, dew-point alarm color and/or sound alarm above or below |
| Menu controls |
Palettes (iron, rainbow,rainbow HC, B&W, B&W inverse), auto-adjust (continuous/manual) |
| Set-up controls |
Date/time, temperature units °C/°F, language, scale, info field, LCD intensity (high/normal/low) |
| Measurement corrections |
Emissivity variable from 0.1 to 1.0, reflected ambient |
| IMAGE STORAGE |
| Type |
Built-in FLASH memory (> 80 images) |
| File formats |
Standard JPEG |
| Lenses (optional) |
| 2 x Telescope |
15° x 11°/0.5 m |
| 0.5 Wide angle |
45° x 36°/0.2 m |
| LASER LOCATIR™ |
| Classification |
Class 2 |
| Type |
Semiconductor AIGaInP Diode Laser: 1mW/635 nm red |
| BATTERY SYSTEM |
| Type |
Li-Ion, rechargeable, field replaceable |
| Operating time |
2 hours continuous operation. Display shows battery status |
| Charging system |
In camera, AC adapter or 12 V from car (with optional Std. cable) 2 bay intelligent charger, 12 V (optional) |
| AC operation |
AC adapter 90-260 V AC, 50/60 Hz, 12 V DC out |
| Voltage |
11-16 V DC |
| Power saving |
Automatic shutdown and sleep mode (user selectable) |
| ENVIRONMENTAL SPECIFICATION |
| Operating temperature range |
-15°C to +45°C |
| Storage temperature range |
-40°C to +70°C |
| Humidity |
Operating and storage 20% to 80%,non-condensing |
| Encapsulation |
IP54, IEC 359 |
| Shock |
Operational: 25G, IEC 68-2-29 |
| Vibration |
Operational: 2G, IEC 68-2-6 |
| PHYSICAL CHARACTERISTICS |
| Weight |
< 800 g, incl. battery with 25° lens |
| Size |
272 mm x 80 mm x 105 mm |
| Tripod Mounting |
1/4" - 20 |
| Cover case |
Plastic and rubber |
| INTERFACES |
| USB |
Image transfer to PC |
| RS-232 cable (optional) |
Image transfer to PC |
| Video Output |
Standard RCA composite video |
Condições de utilização: equipamento disponível para trabalhos de investigação, mediante estabelecimento de protocolo de colaboração ou de co-orientação de trabalhos de pós-graduação e contratação de seguro contra roubo e/ou acidente.

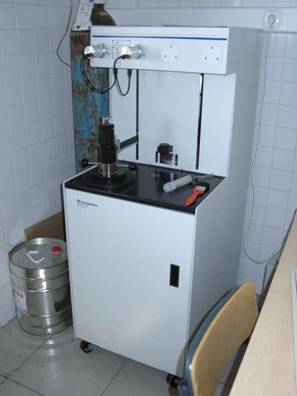

MICROMERITICS AUTOPORE IV
SPECIFICATIONS
General
Low Pressure: Measurement: 0 to 345 kPa
Pore Diameter: 360 to 3.6 µm
High Pressure: Measurement:
From atmospheric pressure to 228 MPa
Pore Diameter: 6 to 0.0055 µm
Transducer Accuracy:
+/-0.10% of full scale (transducer manufacturer's specifications)
Transducer Hysteresis: .05% of full scale for both the 33,000 and 60,000 transducer
Penetrometers:
Capillary Stem Intrusion
Volumes: 0.38, 1.1, 1.7, 3.1, and 3.9 cm3
Intrusion Accuracy: +/-1% of full scale intrusion volume
Sample Size:
Maximum: a cylinder 2.5 cm in diameter by 2.5 cm long
Equilibration Techniques:
By Time: 0 to 10,000 seconds
By Rate: 0 to 1000.000 µL/g per second
By Scanning: Continuous
Utility Requirements:
Voltage: 100/120/220/240 VAC +/- 10%
Frequency: 50/60 Hz
Power: 500 VA plus vacuum pump
Gas: Nitrogen or other clean, dry gas at 345 kPa
Physical:
Height: 143 cm (56.25 in.)
Width: 54.3 cm (21.38 in.)
Depth: 78 cm (30.75 in.)
Weight: 250 kg (551 lb.)
Condições de utilização: equipamento disponível para trabalhos de investigação, mediante estabelecimento de protocolo de colaboração, ou de co-orientação de trabalhos de pós-graduação.
Contacto: fh@fct.unl.pt
